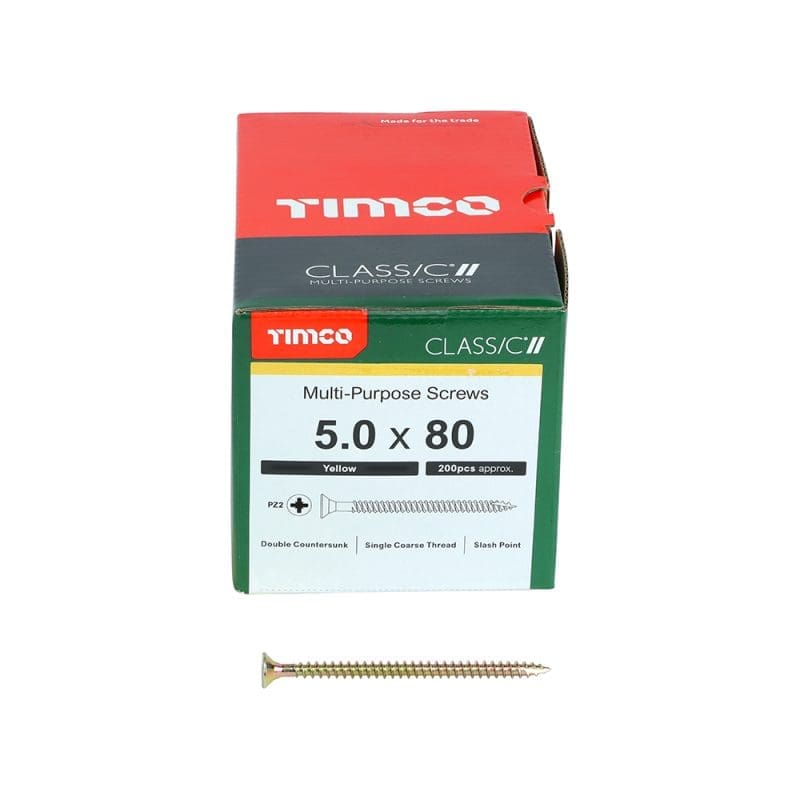

Inner Thread Ø d1 (mm) 3.1 Head Type Double Countersunk Thread Type Single Coarse 40° MOQ 1 Point Type 25° Sharp with Single Slash MOQ Increment 1 Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal Pack Type Box Packs per Carton 16 Size (mm) 5.0 x 80 L (mm) 80 Material Carbon Steel Thread L (mm) 70 Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas Finish Zinc & Yellow Driver Bit Size PZ2 Thread Ø (mm) 5 Recess Type Pozi Lubrication Gleitmo Pack Qty 200 Feature 4 Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility Feature 2 Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion Feature 5 Single slash on 25mm to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge Feature 3 40° deep single thread to provide a secure fixing with high pull-out resistance Brand TIMCO Feature 6 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking Thread Coverage Fully Threaded
