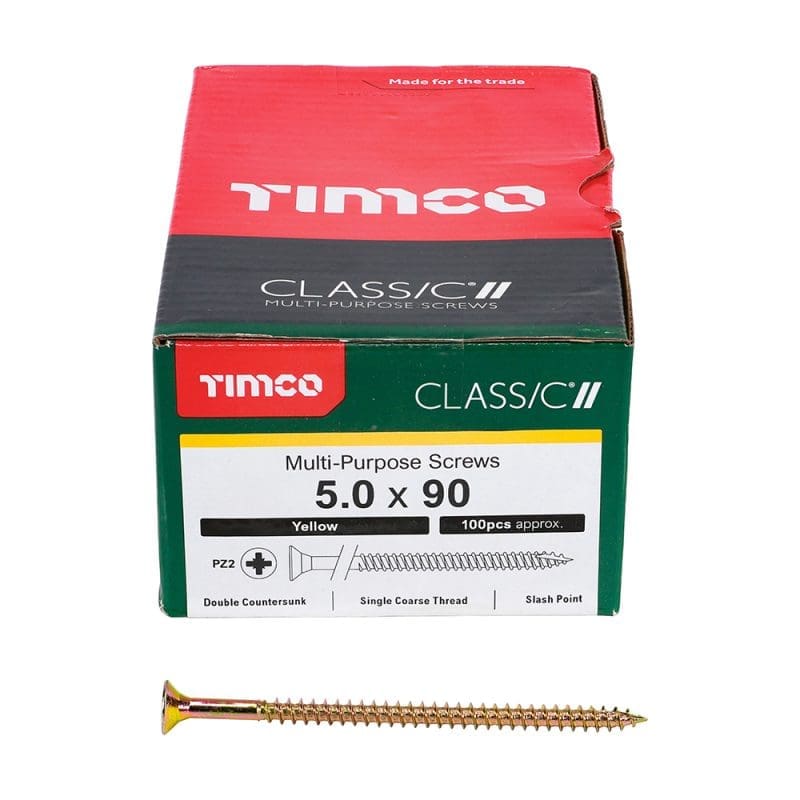

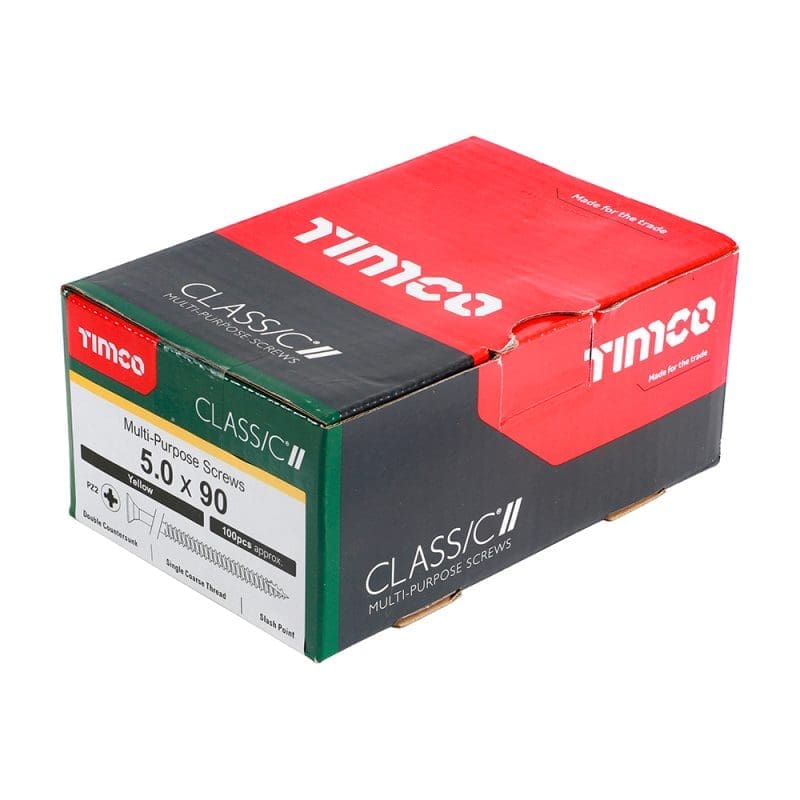

Material Carbon Steel Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas Finish Zinc & Yellow MOQ 1 Size (mm) 5.0 x 90 Packs per Carton 15 Thread L (mm) 70 Thread Ø (mm) 5 Pack Qty 100 Recess Type Pozi Driver Bit Size PZ2 Pack Type Box Lubrication Gleitmo Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal MOQ Increment 1 Point Type 25° Sharp with Single Slash L (mm) 90 Thread Type Single Coarse 40° Inner Thread Ø d1 (mm) 3.1 Head Type Double Countersunk Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking Brand TIMCO Feature 3 40° deep single thread to provide a secure fixing with high pull-out resistance Feature 6 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length Feature 4 Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility Feature 2 Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion Feature 5 Single slash on 25mm to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge Thread Coverage Partially Threaded
