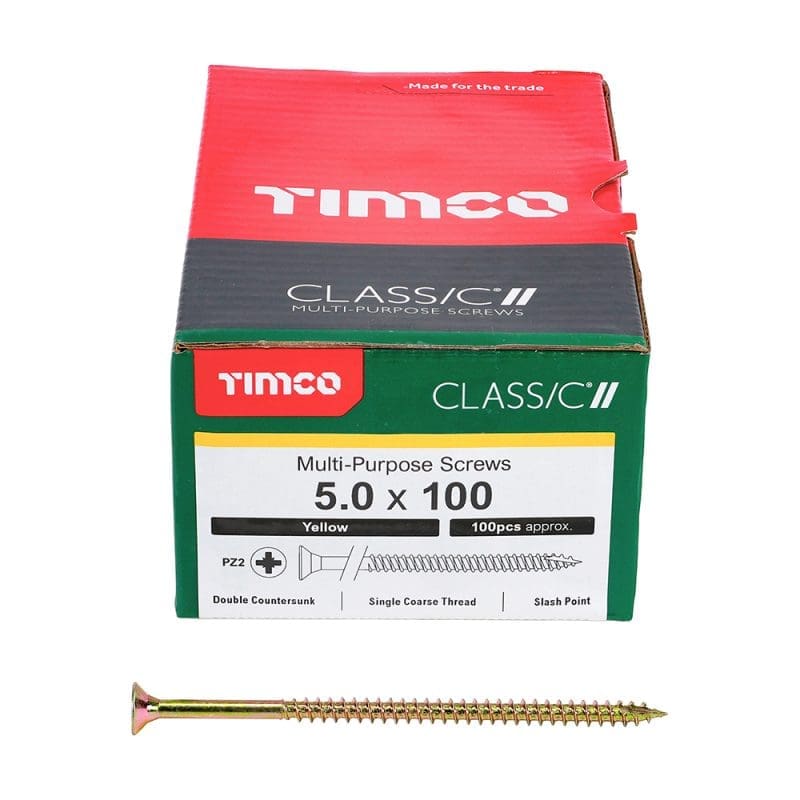

Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power. • Double countersunk reduces the likelihood of head shear and assists completion of countersinking • Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion • 40° deep single thread to provide a secure fixing with high pull-out resistance • Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility • Single slash on 25mm to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length Pack Type Box Material Carbon Steel Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas MOQ 1 Finish Zinc & Yellow Thread L (mm) 70 Recess Type Pozi MOQ Increment 1 Thread Ø (mm) 5 Driver Bit Size PZ2 L (mm) 100 Lubrication Gleitmo Size (mm) 5.0 x 100 Packs per Carton 15 Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal Point Type 25° Sharp with Single Slash Thread Type Single Coarse 40° Inner Thread Ø d1 (mm) 3.1 Head Type Double Countersunk Pack Qty 100 Feature 6 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length Feature 4 Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility Feature 5 Single slash on 25mm to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking Feature 2 Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion Brand TIMCO Feature 3 40° deep single thread to provide a secure fixing with high pull-out resistance Thread Coverage Partially Threaded
