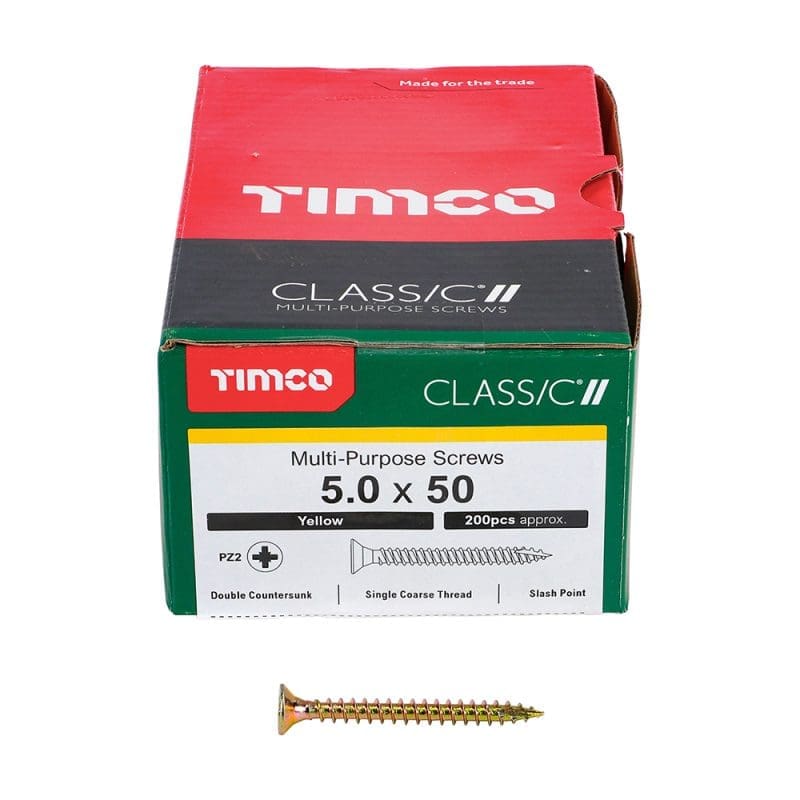

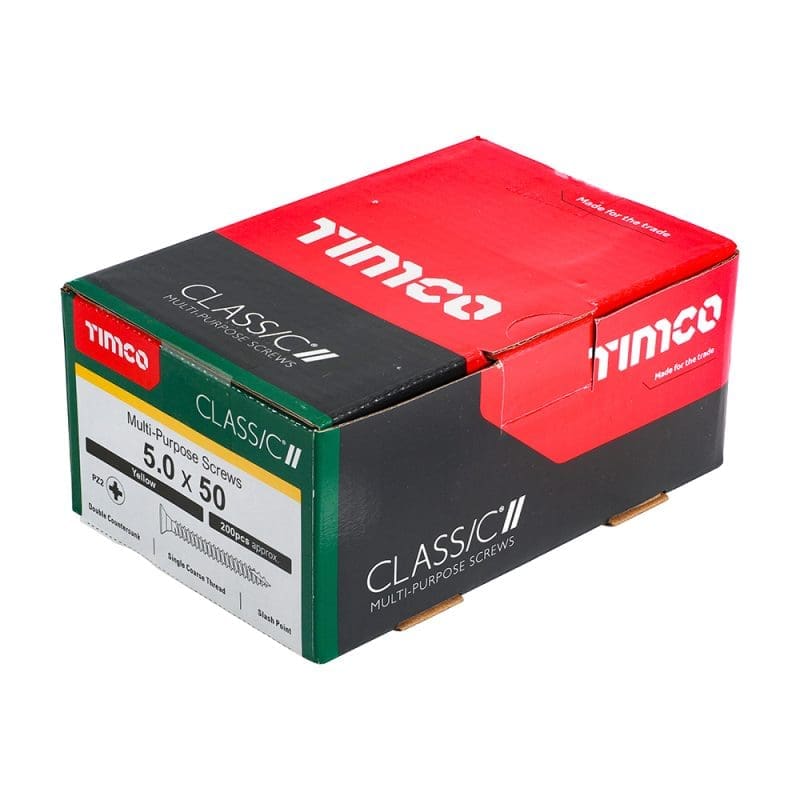

Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power. • Double countersunk reduces the likelihood of head shear and assists completion of countersinking • Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion • 40° deep single thread to provide a secure fixing with high pull-out resistance • Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility • Single slash on 25mm to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length Size (mm) 5.0 x 50 MOQ 1 MOQ Increment 1 Thread L (mm) 45 Material Carbon Steel Head Type Double Countersunk Thread Type Single Coarse 40° Point Type 25° Sharp with Single Slash Pack Type Box Packs per Carton 15 Recess Type Pozi Finish Zinc & Yellow Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas Lubrication Gleitmo Driver Bit Size PZ2 Pack Qty 200 L (mm) 50 Inner Thread Ø d1 (mm) 3.1 Thread Ø (mm) 5 Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal Feature 5 Single slash on 25mm to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge Feature 2 Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking Feature 4 Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility Feature 3 40° deep single thread to provide a secure fixing with high pull-out resistance Feature 6 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length Brand TIMCO Thread Coverage Fully Threaded
