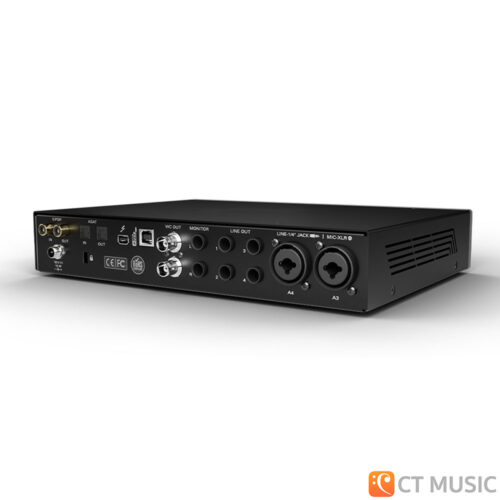

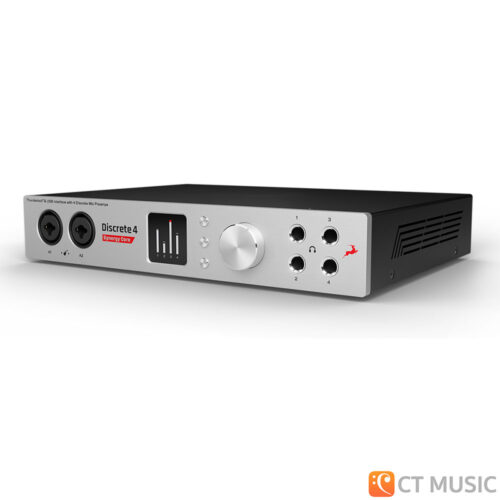

Description... Antelope Audio Discrete 4 Synergy Core THUNDERBOLT AND USB AUDIO INTERFACE WITH FPGA DSP FX PROCESSING, Onboard DSP & FGPA Processing, 4 x Console-Grade Class A Preamps, 36 Included Real-Time Audio FX ออดิโออินเตอร์เฟส 4 Channel ใช้การเชื่อมต่อได้ทั้งแบบ THUNDERBOLT และแบบ USB มาพร้อมกับ Onboard DSP และ FPGA ช่วยให้ CPU คอมพิวเตอร์ของคุณไม่ต้องทำงานหนักในขณะที่ทำงานด้านเสียงต่างๆ และมี FPGA-powered effects มาให้ถึง 36 อัน นอกจากนี้ยังมีปรีแอมป์แบบ Class-A มาให้ 4 ช่อง ซึ่งให้เสียงระดับ Console-Grade และมี Phantom Power 48 V ในส่วนของค่าความละเอียดในการบันทึกจะอยู่ที่ 24-Bit/192kHz The Discrete 4 Synergy Core from Antelope is a four-channel audio interface with onboard DSP and FPGA to free up valuable CPU from your computer during mix sessions. It also includes 36 FPGA-powered effects, some of which can be used with Antelope modeling microphones, giving you the sound of multiple vintage microphones at a fraction of the cost of real-world hardware. The Discrete 4 offers four Class-A preamps that provide console-grade sound. All of them utilize combination XLR-1/4″ connections, but two of them are specifically designed to switch between mic level, line level, and Hi-Z sources. Monitor outputs and two pairs of line outputs can be found on the back of the unit, as can thunderbolt and USB ports for connecting to computers. S/PDIF and ADAT are both provided over optical I/O. The unit is expandable over ADAT, giving you up to eight extra channels. This is Antelope, so you’ll find their top-notch 64-bit acoustically focused clocking on the unit, and you can sync the Discrete 4 over BNC connections, or distribute clocking to other units. 36 Synergy Core FX Included : The Discrete 4 Synergy Core includes a compelling library of 36 real-time studio effects, meticulously modeled after real-world hardware. Latency is painlessly low thanks to FPGA’s parallel computing capabilities, DSP processing, and fast Thunderbolt connectivity. The library can be expanded to include any effects you choose from the web store. Effects include: Gyraf Gyratec IX / Tube Mic Preamp VCA160 / Compressor Stay-Levin / Compressor FET-A76 / FET Compressor VEQ-1A / Tube EQ VMEQ-5 / Tube EQ X903 / Compressor / Limiter FeedForward Antelope Compressor / Compressor Clear Q / Parametric EQ Power EX / Expander VEQ-HLF / Passive High/Low Filter Auraverb / Reverb BA-31 / Mic Preamp Power Gate / Gate Plexi 59 (UK) / Tube Guitar Amp Bass SuperTube VR / Tube Guitar Amp Darkface 65 (US) / Tube Guitar Amp Top30 (UK) Bright / Tube Guitar Amp Tweed Deluxe (US) / Tube Guitar Amp Overange 120 (UK) / Tube Guitar Amp BurnSphere (DE) Lead / Tube Guitar Amp Marcus II (US) Lead / Tube Guitar Amp Modern (US) CH3 / Tube Guitar Amp Rock 75 (UK) / Tube Guitar Amp Rock 22.10 (UK) / Tube Guitar Amp Darkface 65 2×12 / Guitar Cabinet Top30 2×12 / Guitar Cabinet Modern 4×12 / Guitar Cabinet Green 2×12 / Guitar Cabinet Vintage 4×12 / Guitar Cabinet Green 4×12 / Guitar Cabinet Caliper 50 1×10 / Guitar Cabinet Bluelux 1×12 / Guitar Cabinet Clst 1×12 / Guitar Cabinet England 4×12 / Guitar Cabinet Bass Tube 1×15 / Guitar Cabinet Mic-Modeling Ready The Discrete 4 Synergy Core’s Accusonic 3D modeling engine lets you transform the—separately available—Antelope Audio Edge and Verge modeling microphones into expensive-sounding vintage replicas. Change polar patterns during or after recording. Choose from a collection of classic and rare microphones as you monitor and record live, bringing out the musician’s finest performance. Sturdy and Portable Housed in a machined aluminum chassis, each unit is hand-built in a European facility to strict standards, using component choices and extensive quality control. Multiple Avenues of Connectivity With an abundance of analog and digital connectivity, as well as both USB and Thunderbolt ports for computer connection, the Discrete 4 Synergy Core presents many options for routing signals. Four microphone inputs, four line outputs, a pair of monitor outputs, four headphone outputs, and S/PDIF are at your disposal. Digital expandability is possible via ADAT chaining. Furthermore, a pair of Word Clock outputs let you distribute the interface’s highly stable clock signal across your studio. Features : Mic, Instrument & Line Inputs Onboard DSP & FGPA Processing 4 x Console-Grade Class A Preamps 36 Included Real-Time Audio FX Specs Form Factor : Tabletop Channels of I/O : Analog: 4 Inputs / 6 Outputs, ADAT:8 Inputs / 8 Outputs Max Sample Rate/Resolution : 192 kHz / 24-Bit Number of Mic Preamps : 4 Input Level Adjustment : 1 x Knob Expansion Slots : None Connectivity Analog Audio I/O : 2 x Combo XLR-1/4″ 3-Pin Mic/Line Input 2 x Combo XLR-1/4″ 3-Pin Mic/Line/Hi-Z Input 2 x 1/4″ TRS Monitor Output 4 x 1/4″ TRS Line Output 4 x 1/4″ TRS Headphone Output Phantom Power : 48 V, Selectable On/Off Digital Audio I/O : 1 x TOSLINK Optical ADAT Input 1 x TOSLINK Optical ADAT Output 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output Host Connection / USB : 1 x USB Type-B (USB 2.0), 1 x Thunderbolt/MDP Sync I/O : 2 x BNC Word Clock Output MIDI I/O : None Wireless Connectivity : None Memory Card Slot : None Performance Max Output Level : Monitor Outputs : 20 dBu Line Outputs : 20 dBu Impedance : BNC Word Clock : 75 Ohms Dynamic Range : Mic Inputs : 121 dBA AD/DA Converters : 121 dB Line Outputs : 118 dB THD N : Mic Inputs : -106 dB AD/DA Converters : -112 dB Line Outputs : -100 dB EIN : -128 dBu A-Weighted Digital Audio Sample Rates : 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz Bit Depths : 24-Bit Sync Sources : Internal Clocking : Output Voltage: 3 V p-p, Lock Range: 32 to 192 kHz Compatibility OS Compatibility : Windows 10 (64-Bit), macOS 10.12 or Later (High Sierra and Later Recommended) Included Software : None Processor Requirement : Intel Core i3, AMD FX RAM Requirements : 4 GB, 8 GB Recommended Required Hardware : Thunderbolt Port or USB 2.0 Port Power Power Requirements : AC/DC Power Adapter (Included) Power Consumption : 15 W Physical Operating Temperature : 2 to 122°F / 0 to 50°C Dimensions : 10.2 x 1.7 x 8.2″ / 261 x 44 x 208 mm Weight : 3.7 lb / 1.7 kg Packaging Info Package Weight : 5.735 lb Box Dimensions (LxWxH) : 13.7 x 12.8 x 3.9″ Download Discrete 4 Synergy Core User Manual.pdf webmaster
