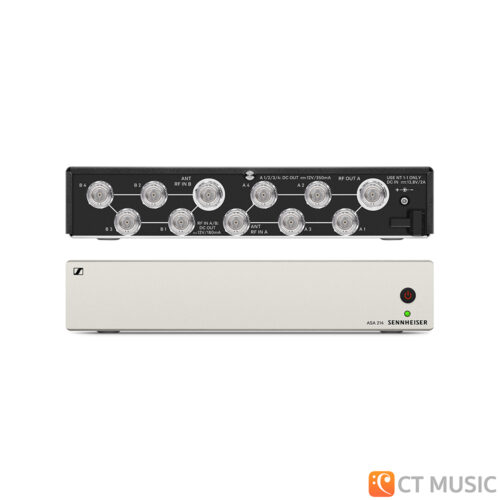

Description... Sennheiser ASA 214-UHF The ASA 214 active antenna splitter is built in a full metal housing and ships with 8 BNC cables included. The splitter runs up to 4 receivers of the ew series with two antennas. The UHF-Version includes the NT 1-1 power supply with EU, UK and US adapters, while the ASA 214-1G8 includes the NT 1-1 with EU, UK and AU adapters. Compatible with G4 and G3 systems Power supply via BNC cables for EM 300-500 / EM 100 receivers. No additional power supply needed Up to 4 true diversity receivers can be used with two external antennas Full metal housing Specifications Impedance 50 Ω Dimensions approx. 212 x 168 x 43 mm Weight approx. 1090 g Power consumption max. 2.0 A with connected receivers and boosters Storage temperature -20°C – 70°C Operating temperature -10°C – 55°C Power supply 13,8 V DC (with NT 1-1 mains unit) Antenna connector BNC Frequency range 470-870 MHz (UHF), 1785-1800 MHz (1G8) Operating relative humidity 5 – 95 % What’s in the Box ASA 214 splitter 8x BNC cable 50cm NT 1-1 power supply webmaster
