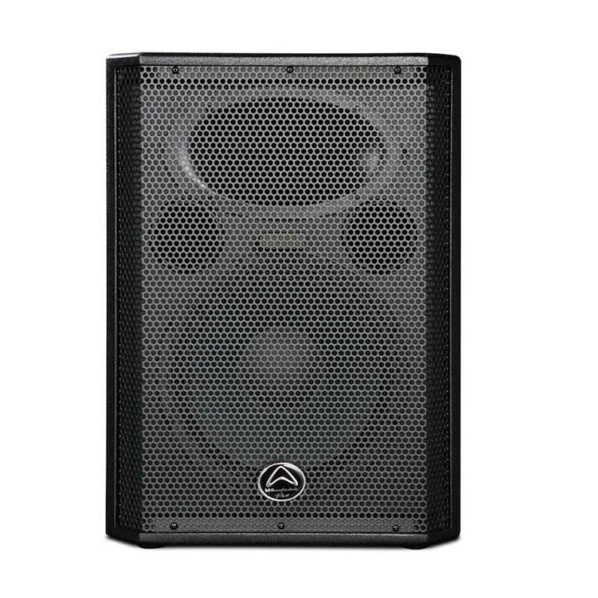

The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between our Impact Series and the Delta Series of passive loudspeakers, EVO-X is a new multipurpose lineup of 8 models featuring many useful and practical design elements. All models benefit from a hardwearing Rhino Rock paint finish and are visually enhanced with the iconic Wharfedale Pro ‘boomerang’ logo being engraved onto their surface. All models also feature practical 4-way handles to make transportation simple and pain-free. Full range models feature a unique 3dB HF boost switch allowing for quick, on-stage tweaks to be made to the sound as the crowd grows while the 3 subwoofer options all have high pass filter outputs, reducing onstage cabling and peripherals. Robust crossover designs, elliptical waveguides and large voice coils ensure that the sound quality is as beautiful as the cosmetic design. Simply – great sounding and reliable PA! Features: 2-way 12″ Passive full range MDF construction Durable Rhino Rock paint finish 90° x 60° dispersion. Elliptical waveguide 2 x 4-way rubberised handles Dual speakON compatible and 1/4″ jack inputs Continuous 300w Programme 600w Peak 1200w 8Ω 3dB boost swtich Iconic boomerang The surface of EVO-X is covered in our enhanced Rhino rock paint. This is durable and hardwearing and will protect the EVO-X throughout its life. The surface of EVO-X is also engraved with the iconic Wharfedale Pro boomerang logo. A logo which demonstrates sonic and hardware quality. 3dB boost control The full range and monitor models of the EVO-X series feature a handy 3dB boost switch. This gives the output a little ‘lift’ when needed depending on the acoustics of the venue. Inputs are also versatile due to the inclusion of both NL4 (speakON compatible) connectors AND standard 1/4″ jack sockets. These features mean that EVO-X is simple to setup wherever the performance is taking place. Tough MDF construction The cabinet is constructed of MDF. This solid, but still lightweight, material gives EVO-X rigidity and reduces any mechanical distortion which a lesser material may introduce. The MDF material also contributes to the overall tone of EVO-X. It delivers a warmth and roundness to the sound, making EVO-X a pleasure to listen to, even at higher volumes. 90° x 60° Elliptical waveguides Along with the smooth sound characteristics, which are enhanced by the MDF construction, the EVO-X series also use 90° x 60° Elliptical waveguides. This waveguide delivers the directional dispersion needed for a variety of live applications and installations, and direct the EVO-X’s IRIS X compression driver’s output to just where you want it. SPECIFICATIONS: Model name: EVO-X12 System Type: Passive Configuration: 2-way Frequency Response: ( /-3dB) 55Hz-20kHz Frequency Range: (-10dB) 50Hz-20kHz Sensitivity: (2.83v/1m) 98dB System rated impedance: 8Ω Calculated Maximum: SPL @1m 129dB Low Frequency Transducer Size: 305mm / 12″ Voice coil size: 51.6mm / 2″ Rated impedance: 8Ω LF Power: (re:AES-2012) 300w Hi Frequency Transducer HF Driver type: Compression driver Voice coil size: 44.5mm / 1.75″ Exit size: 25mm / 1″ Diaphragm Material: Titanium Rated impedance: 8Ω HF Power: (re:AES-2012) 40w Nominal coverage: 90° x 60° Power System continuous power: 300w System programme power: 600w System peak power: 1200w Crossover Frequency: 2.3kHz Input connectors: 2 x NL4 (speakON Compatible) 2 x 1/4″ Jacks Hardware Pole mount Dual Angle: (0⁰ or 10⁰) 35mm Pole Socket Handles: 2 on sides Enclosure Enclosure: material MDF Finish: Rhino rock black paint Grille material and finish: 1.2mm Steel Dimensions – unpacked Height: 590mm / 23.23″ Width front: 430mm / 16.93″ Width rear: 297.5mm / 11.71″ Depth: 370mm / 14.57″ Dimensions – packed Height: 655mm / 25.79″ Width front: 492mm / 19.37″ Width rear: 328mm /12.91″ Depth: 408mm / 16.06″ Weight Net weight: 19.2kg / 42.2lbs Gross weight: 22.4kg / 49.3lbs
