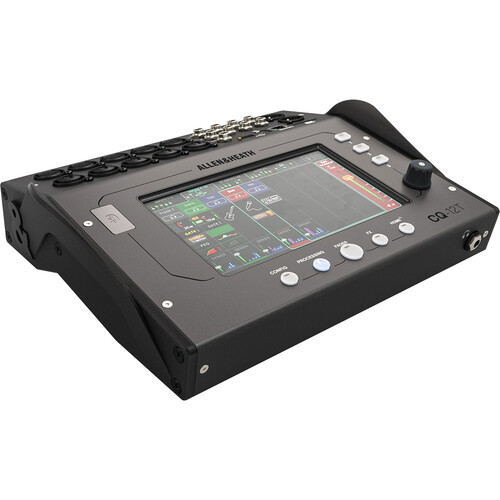

Allen & Heath CQ-12T Compact 12-Channel Digital Mixer with Touchscreen Mix and record with the Allen & Heath CQ-12T, a compact digital mixer featuring 96 kHz FPGA processing, Bluetooth, wireless control, and SD/USB audio recording and playback, well suited for bands, producers, and AV rental houses. Use it as a main mixer in a small venue or a sub mixer on a larger stage. The CQ-12T mixer utilizes a 7″ capacitive touchscreen interface to easily navigate and control the robust mix engine that comes complete with several assistants to help your mixes sound their best including a gain assistant, feedback assistant, FX assist engine, and Automatic Mic Mixer (AMM). Take control of the full complement of channel strip effects like EQ, compression, and gating that’s available on every channel and set up several sub-mixes for monitoring and effects. The CQ-12T features 10 mic/line XLR/combo XLR-1/4″ inputs, a pair (for stereo) of 1/4″ balanced inputs, two balanced XLR main outputs, and six 1/4″ mix outputs. There is an assignable headphone output. The mixer ships with a 12 VDC power supply. Features 10 Mic/Line In, Two 1/4″ Balanced TRS In Two XLR Main Out, Six 1/4″ Mix Out 7″ Capacitive Touchscreen Interface 16×18 USB-B Audio Interface 16×18 Multitrack Rec/Playback via SD Stereo USB Rec/Playback CQ-MixPad Control App 96 kHz FPGA Processor with Built-In FX AMM, Feedback, FX Assist Engines Specifications Mixer Number of Analog Input Channels 12 Number of Mic Preamps No Number of Analog Output Channels 8 Max I/O Capacity 12 x Input / 6 x Output Mix Routing 1 x Stereo Main LRC 6 x Mono Bus Groups No Presets No Display 7″ Touchscreen (Backlit) Faders & Level Adjustment No Signal Processing Input Polarity Normal/Reverse Dynamic Processing Compressor, Gate Solo/Mute Solo, Mute per Input Channel, Bus, Master Built-In Effects 2 x Stereo Effect (Type Unspecified) Automatic Mic Mixing Yes Digital Audio Sample Rates 96 kHz Performance dBFS Reference Level 18 dBu = 0 dBFS Connectivity Analog Inputs 5 x XLR 3-Pin Balanced Mic/Line Input 5 x Combo XLR-1/4″ 3-Pin Balanced/Unbalanced Mic/Line Input 2 x 1/4″ TRS Balanced/Unbalanced Stereo Line Input (1 Stereo Pair) Analog Outputs 2 x XLR 3-Pin Stereo Main Output (1 Stereo Pair) 6 x 1/4″ TRS Balanced/Unbalanced Mix Output 1 x 1/4″ TRS Unbalanced Stereo Headphone Output Phantom Power 48 V Digital I/O 1 x RJ45 (Network) MIDI I/O No USB 1 x USB-A (Audio Playback, Audio Streaming, External Memory, Service) 1 x USB-B 2.0 (Host Connection) USB I/O Capacity 16 x Input / 18 x Output Wireless Bluetooth *Built-In Mobile App Compatible Yes: Android & iOS App Name: CQ-MixPad Functionality: Access Stored Files, Adjust Settings, Remote Control *As of August 2023: Check with the manufacturer for the most up-to-date compatibility External Display I/O No Recording Max Multitrack Recording 16 Tracks Media Support SD Power AC Input Power 100 to 240 VAC, 50 / 60 Hz DC Input Power 12 VDC at 4 A Physical Rack Mountable Yes Rackmount Size 6 RU (with Optional Hardware) Dimensions 11.4 x 9.5 x 3.5″ / 29 x 24.2 x 8.8 cm Weight 5.3 lb / 2.4 kg Packaging Info Package Weight 9.025 lb Box Dimensions (LxWxH) 14.5 x 12 x 7.7″
