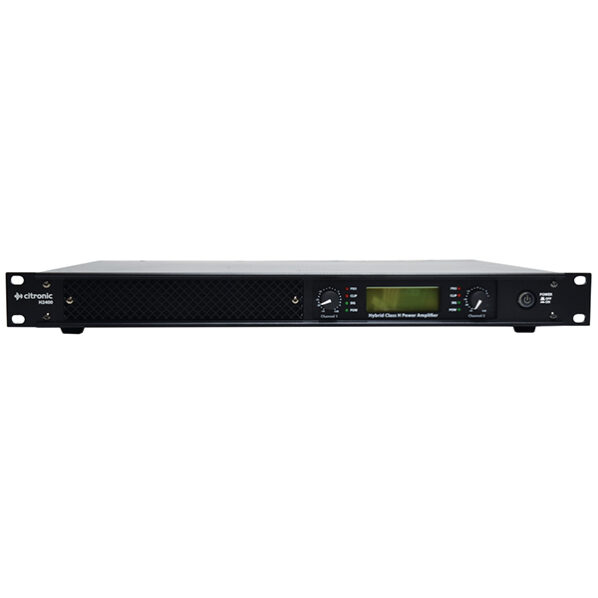

Citronic H2400 – 2x900W 1U 19″ Digital Amplifier [172.125]

CITRONIC – H2400 1U 19IN CLASS-H AMPLIFIER 2X 900WRMS Lightweight power amplifiers in a 19″ rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-H output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes. A switchable 120Hz low-pass filter can be selected for use with subwoofers, avoiding the need for a separate crossover and saving additional expense and rack space.   Features Hybrid class-H circuit design Digitally controlled and monitored power section Switchable 120Hz low-pass crossover Backlit LCD status display Full internal thermal and overload protection Stable down to 2 Ohms (4 Ohms bridged)   Specifications Power supply: 200-240Vac, 50Hz (IEC) Amplifier : construction: Hybrid Class-H Protection: Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush Iimiting Frequency response: 20Hz-20KHz ±0.5dB THD N: 0.2% S/N ratio: -95dB Damping factor: >700 Input sensitivity: 1.0V – 1.4V – 2.0V switchable Input impedance: 20K? (balanced),10K? (unbalanced) Dimensions: 483 x 361 x 44 mm (1U) Fuse T8AL : 250V Power rms @ 8 Ohms : 2 x 600W Power rms @ 4 Ohms : 2 x 900W Power rms @ 2 Ohms : 2 x 1200W (40ms burst 1kHz sine) Power rms bridge @ 8 Ohms : 1800W Power rms bridge @ 4 Ohms : 2400W (40ms burst 1kHz sine) Weight : 7.0kg
