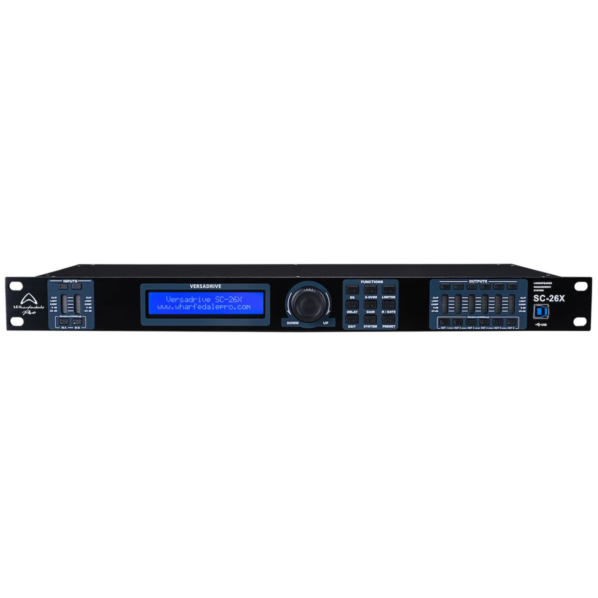

Wharfedale Versadrive SC26X – Speaker Management System (2-In/6-Out)

Versadrive SC-26X To maximise the performance of any PA system – but moreover to protect it – DSP is essential. Introducing the entry level model in the Versadrive series of DSP processors from Wharfedale Pro – SC-26X. SC-26X replaces the long-serving SC-26 and, although listed as an entry model, the new SC-26X brings several important and practical features to loudspeaker management.   Features RMS Compressors and Peak Limiters. Dual band Dynamic EQ stage on Inputs. 96 KHz sampling frequency PC Software control USB, Ethernet and RS485 Protect and survive!   Specifications Inputs 2 x XLR socket Outputs 6 x XLR pin Input Impedance Balanced : 20 KΩ Output Impedance Balanced : 100 KΩ PC Port USB (Front panel). Ethernet and RS485 (Rear panel) CMRR >70 dB (1 KHz) Input range ≤ 16.3 dBu Frequency Response 19.7 Hz – 20 KHz ( /- 0.5 dB) SNR >104 dB THD < 0.01% (Output = 0 dBu / 1 KHz) Channel separation > 100 dB (1 KHz) Processor 32-bit processor AD / DA converter 24-bit, 96 KHz sampling frequency Display 2 x 24 LCD backlight display.  5-band LED display. Mute / Editing status Power consumption ≤ 25 W Power AC 110 V / 220 V  50 / 60 Hz Dimensions – Unpacked (W x D x H) 482 mm x 190 mm x 44 mm Net Weight 3.6 Kg Dimensions – Packed (W x D x H) 562 mm x 296 mm x 98 mm Gross Weight 4.5 Kg
