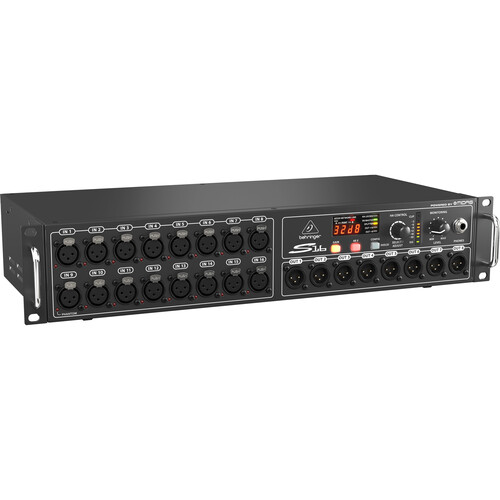

Behringer S16 Digital I/O Stage Box Utilize the ultimate solution for connecting the onstage talent with your Front of House (FOH) console with the Behringer S16, a digital I/O stage box with 16 fully programmable, remotely controllable Midas-designed mic preamps and 8 analog, balanced XLR outputs. The stage box connects to the FOH through a single Cat 5e cable without the need for a dedicated router. This I/O box is designed with multiple scenarios in mind; it works equally well as a stand-alone pair for use with analog mixing consoles, or as part of the trio of a digital mixing solution along with the X32 digital mixer and P16 personal monitoring system. It features AES50 networking with the Klark Teknik SuperMAC technology. The front panel also allows the level and phantom power to be controlled for all inputs and outputs, accompanied by an 8-LED meter and 7-segment display. The currently selected channel can be monitored in mono through a 1/4” TRS headphone jack with level control. S16 Overview 16 Midas-designed, fully programmable mic preamps for audiophile sound quality 8 analog, servo-balanced XLR outputs AES50 network ports featuring Klark Teknik’s SuperMAC networking capability for ultralow jitter and latency ULTRANET connectivity for Behringer’s P16 personal monitoring system Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability Dual AES50 ports for cascading additional S16, SD16, or SD8 stageboxes—no merger or router required Precise LED metering plus 7-segment displays for signal control on stage Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK connectors Phones output assignable to any of the inputs/outputs for on-stage monitoring MIDI In/Out for bidirectional communication between Behringer X32 Series console and on-stage MIDI devices Remote operation via shielded Cat 5e cable up to 330 ft length USB connector for system updates via PC “Planet Earth” switching power supply for maximum flexibility (100 to 240 VAC), noise-free audio, superior transient response plus low power consumption for energy saving “Built like a tank” yet compact, all-steel 2 RU rackmount chassis Massive Connectivity When used as part of a complete X32 system, two S16 stage boxes can be cascaded through the built-in AES50 ports, providing connectivity for up to 32 mic / line inputs, 16 balanced outputs, and the powerplay P16 personal monitoring system, which can feed up to 48 individual monitor mixers. It also includes two ADAT sockets (sold separately) for connecting channels 1 to 8 and 9 to 16 to outboard devices, a convenient USB port for system updates via your PC, MIDI I/O for lighting systems, and sound module control.
