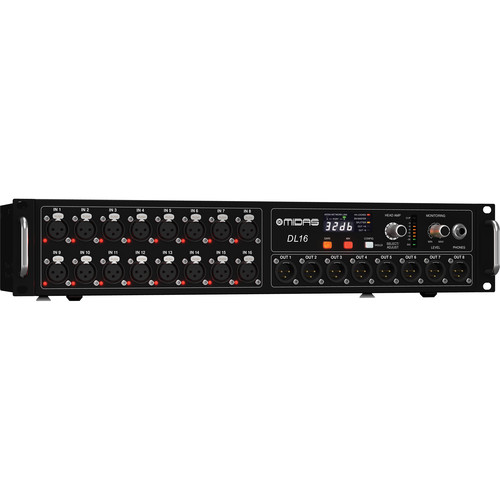

Midas DL16 16-Input / 8-Output Stage Box with 16 Midas Mic Preamps Closing the gap between the stage and the front of the house, the Midas DL16 is a 16-in/8-out stage box that includes 16 fully programmable and remotely controllable Midas mic preamps, which are the same preamps found in the larger PRO Series consoles and are equipped with switchable 48V phantom power. Additionally, the DL16 features 8 electronically balanced low-impedance line-level outputs, as all of the DL16’s inputs and outputs have been designed to handle both balanced and unbalanced signals, removing any worries about signal degradation, noise, and crosstalk interference. The DL16 also features dual Cirrus Logic Digital to Analog converters, providing a reduced noise floor and lower distortion, and post-DAC filtering to remove wide-band noise. Features 16 Midas PRO microphone preamplifiers with switchable 48V phantom power 8 electronically balanced low impedance line level outputs Ultranet personal monitoring system connectivity for in-ear applications Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications Dual AES50 ports for cascading DL16 units—no merger or router required Remote operation up to 328′ (100m) via CAT5/5e cable All settings programmable from front panel controls or console Status indicator LEDs on the front panel Headphone output assignable to any of the inputs or outputs for on-stage monitoring MIDI In/Out for bidirectional communication between FOH console and on-stage MIDI devices Features Neutrik etherCON AES50 and Ultranet network ports Rugged 2U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply Specifications Front Panel Connections Microphone Inputs 16 XLR male 3-pin, Neutrik 48 V phantom powered Outputs (Analog) 8 XLR female 3-pin, Neutrik Dual ADAT Preamps 16 Midas PRO MIDI I/O For directional communication Monitoring Ultranet personal monitoring system Headphones 1 x 1/4″ / 6.3 mm TRS Network AES ports with Klark Teknik SuperMAC technology Network Cables CAT5/5e for up to 328′ / 100 m Power Supply Auto-ranging universal switch-mode power supply Packaging Info Package Weight 13.65 lb Box Dimensions (LxWxH) 21.5 x 12.1 x 5.8″
