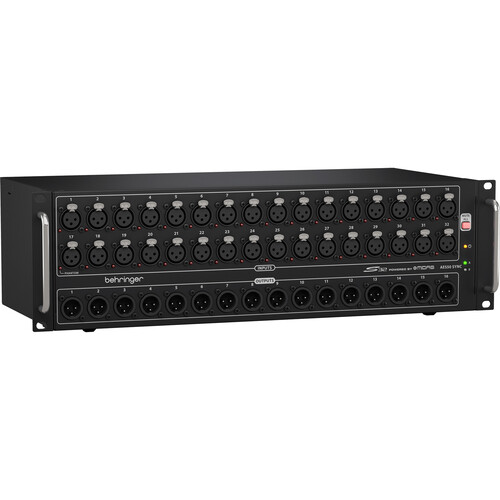

Behringer S32 – Digital Stage Box

Behringer S32 Digital Stage Box Massive Connectivity When used as part of a complete X32 system, two S32 Stage Boxes can be connected via the mixer’s built-in dual AES50 ports, providing connectivity for up to 64 remote mic/line inputs, 32 balanced outputs and the awesome POWERPLAY P-16 Personal Monitoring System, which can feed up to 16 individual monitor mixes via Cat 5 to every musician on stage. When 32 inputs are not enough, an S32 Stage Box may also be cascaded with an S16 or SD16 for full use of the 48-channel bidirectional capacity of AES50 SuperMAC networking on just one Cat 5 line. Behringer also included 2 optical ADAT outputs and two AES-3 (AES/EBU) stereo outputs for digitally connecting to outboard devices, such as PA system controllers. The S32 also features a convenient USB port for system updates via your PC, plus MIDI I/O for your lighting systems and sound module control. Ecosystem and Beyond The S32 was initially designed with our flagship X32 Digital Mixing Console in mind, but any mixing board with AES50 networking capability can still tap directly into the S32’s powerful feature set. For instance, an S32 and X32 CORE can be used to create an amazing power-combo for remote-controlled digital mixing in only 4 RU. While the X32 CORE may be used to run an independent monitor mix, it can also relay and share all I/O with the FOH—whether you are using an X32 Series console, or any other digital mixer that supports MADI, Dante, ADAT, or AES50 I/O. Behringer offers very reasonably priced option cards to replace the standard 32 x 32 channel USB interface for exactly that purpose. You can even choose to run the complete show from the stage rack’s X32 CORE via the remote control apps. And since the S32 and X32 CORE communicate via AES50, they don’t even have to live in the same physical rack, but can be separated by Cat 5 cabling, if that is more convenient for your venue. Ultranet Seamless Integration The world-renowned engineers at Klark Teknik, Midas, Turbosound, and Behringer have all come together to create something truly innovative that will change your live and studio workflow forever—welcome to ULTRANET. This revolutionary technology seamlessly transmits up to 16 independent channels of 24-bit digital audio and control data via a single shielded Cat 5e cable between compatible digital devices, including mixers, I/O stage boxes, powered loudspeakers, and personal monitoring systems. Advantages realized through ULTRANET digital networking, versus traditional analog methods, include: all audio signals are impervious to Radio Frequency Interference (RFI); signal crosstalk is eliminated, and ease of uses translates directly into a significant amount of time saved during show setup or installation. ULTRANET effectuates a powerful digital eco-system that gives you unparalleled ease of deployment, performance, and control for Behringer P16 Personal Monitoring Systems and Turbosound iQ Speaker Series. Dual AES50 Ports for Massive Connectivity Klark Teknik SuperMAC (AES50-Compliant) technology gives the S32 its high-capacity, ultralow latency digital interconnectivity as well as superbly simple deployment and ease of use. Klark Teknik engineers worked hand-in-hand with Behringer to ensure the S32 meets, or exceeds, the requirements of live entertainers and their professional audio engineers. Some of the outstanding. Features 32 Remote-Controllable Midas Preamps 16 Servo-Balanced XLR Outputs Dual AES50 Networking ULTRANET for P16 Monitoring System Klark Teknik SuperMAC Technology Dual ADAT Outputs MIDI I/O USB for Updates Remote Operation via Cat 5e Cable Includes Power Cord Specifications General Compatibility Behringer X-Series Performance Frequency Range, at 48 kHz Sample Rate, (0 / -1 dB) 10 Hz to 22 kHz Dynamic Range, Analog Mic In to Analog Out (Typical): 104 dB A/D Dynamic Range, Mic Preamp and Converter (Typical): 106 dB D/A Dynamic Range, Converter and Output: 106 dB Crosstalk Rejection at 1 kHz, Adjacent Channels 100 dB Output Level, XLR, (Nominal / Maximum): 4 dBu / 21 dBu Output Impedance, XLR, (Unbalanced / Balanced): 75 Ohms / 75 Ohms Residual Noise Level, XLR: -83 dBu (-85 dBu, A-Weighted) Processor A/D-D/A Conversion (Cirrus Logic A/D CS5368, D/A CS4385): 24-Bit at 44.1 / 48 kHz, 114 dB Dynamic Range Networked I/O Latency (Stagebox In > Console Processing > Stagebox Out): 1.1 ms Inputs/Outputs USB I/O 1 x USB-B Female Input Audio I/O 32x XLR 3-Pin Line/Mic Input 16x XLR 3-Pin Line Output Microphone Input Preamp Design: Midas Input Impedance XLR, (Unbalanced / Balanced): 5 Kilohms / 10 Kilohms Non Clip Maximum Input Level, XLR: 23 dBu THD Noise, 20 dB Gain, 0 dBu Out: < 0.008% (< 0.006% A-Weighted) Phantom power, Switchable per Input: 48 V Equivalent Input Noise Level, XLR (Input Shorted): -128 dBu CMRR, XLR, at 20 dB Gain (Typical): > 70 dB Digital I/O AES50 SuperMAC Networking at 48 or 44.1 kHz, 24-Bit PCM: 2 x 48 channels, Bidirectional AES50 SuperMAC Cable Length, Cat 5e Shielded: Up to 328.1′ / 100 m ULTRANET Networking at 48 or 44.1 kHz, 22-Bit PCM: 1 x 16 Channels, Unidirectional ULTRANET Cable Length, Cat 5 Shielded: Up to 246.1′ / 75 m ADAT Output at 48 or 44.1 kHz, 24-Bit PCM: 2 x 8 Channels, Unidirectional Toslink Optical, Cable Length: 16.4′ / 5 m, Typical AES/EBU output at 48 or 44.1 kHz, 24-Bit PCM: 2 x 2 Channels, Unidirectional XLR, 110 Ohms Balanced, Cable Length: 16.4′ / 5 m, Typical Power Power Source AC Input (Included) AC Input Power 100 to 240 VAC, 50 / 60 Hz Power Consumption 55 W Physical Color Gray Environmental Resistance No Dimensions 19 x 9.5 x 5.4″ / 48.3 x 24.1 x 13.7 cm Weight 12.4 lb / 5.6 kg
